Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Hondark
  • Model Number: PL501630
  • Type: Li-polymer
  • Nominal Voltage: 3.7V
  • Size: 5X16X30mm, 5X16X30mm
  • Nominal Capacity: 200mAH, 200mAh
  • Model: rechargeable li-polymer cell with PCM
  • Part number: PL501630
  • Work: 1C with PCM
  • Standard Voltage: 3.7V
  • Charge voltage: 4.2V

Packaging & Delivery

Packaging Details Blister,industrial packaging
Delivery Time 5~8days

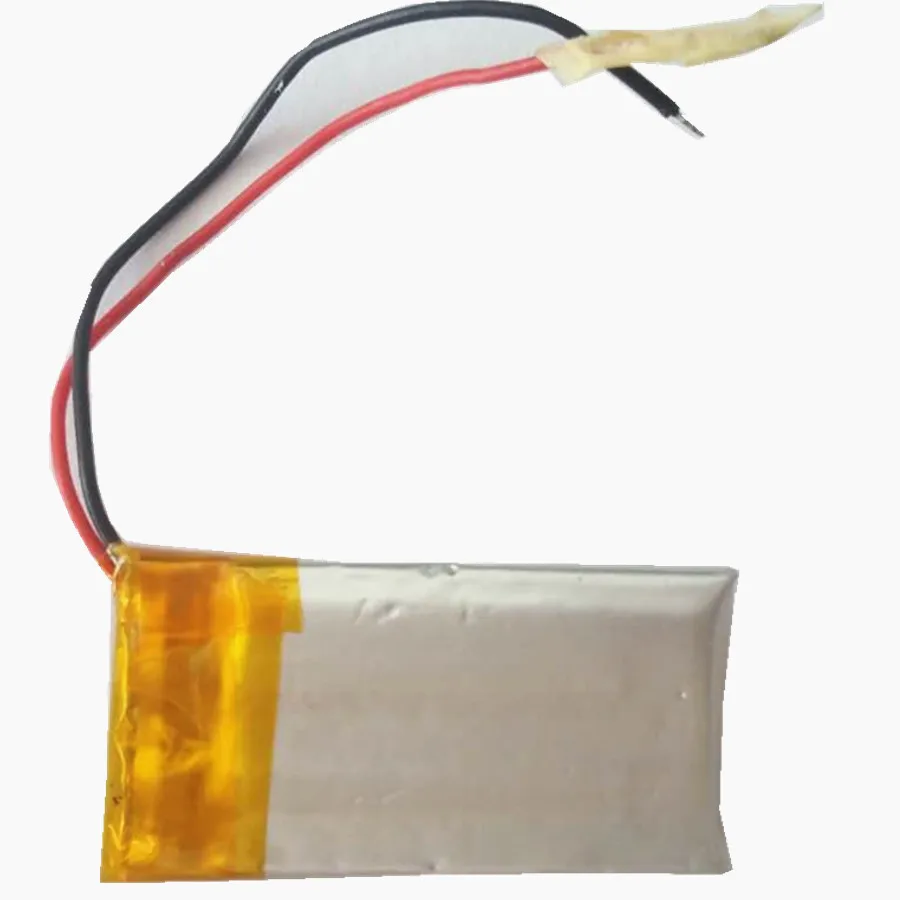

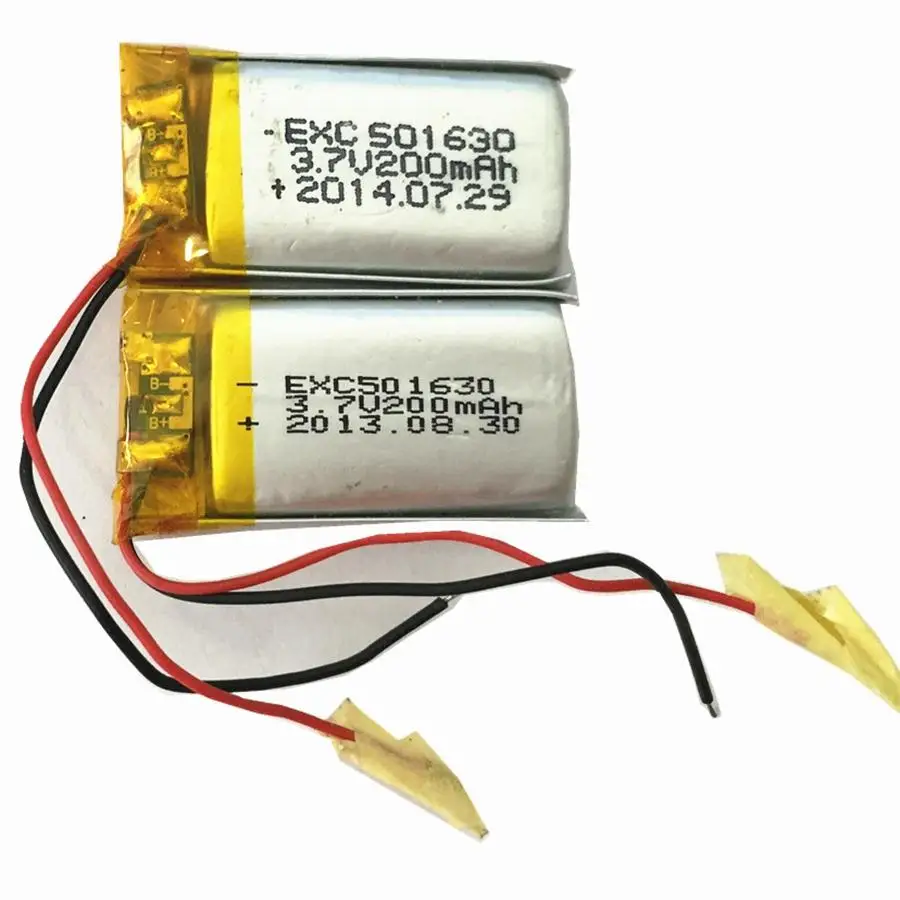

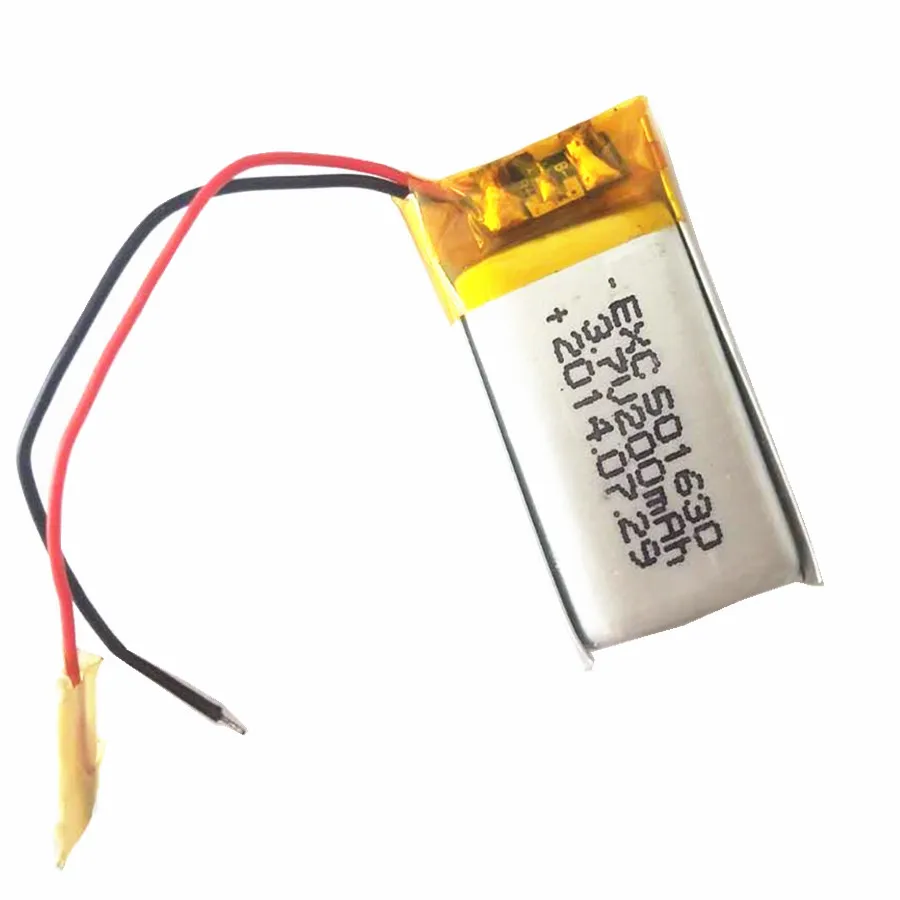

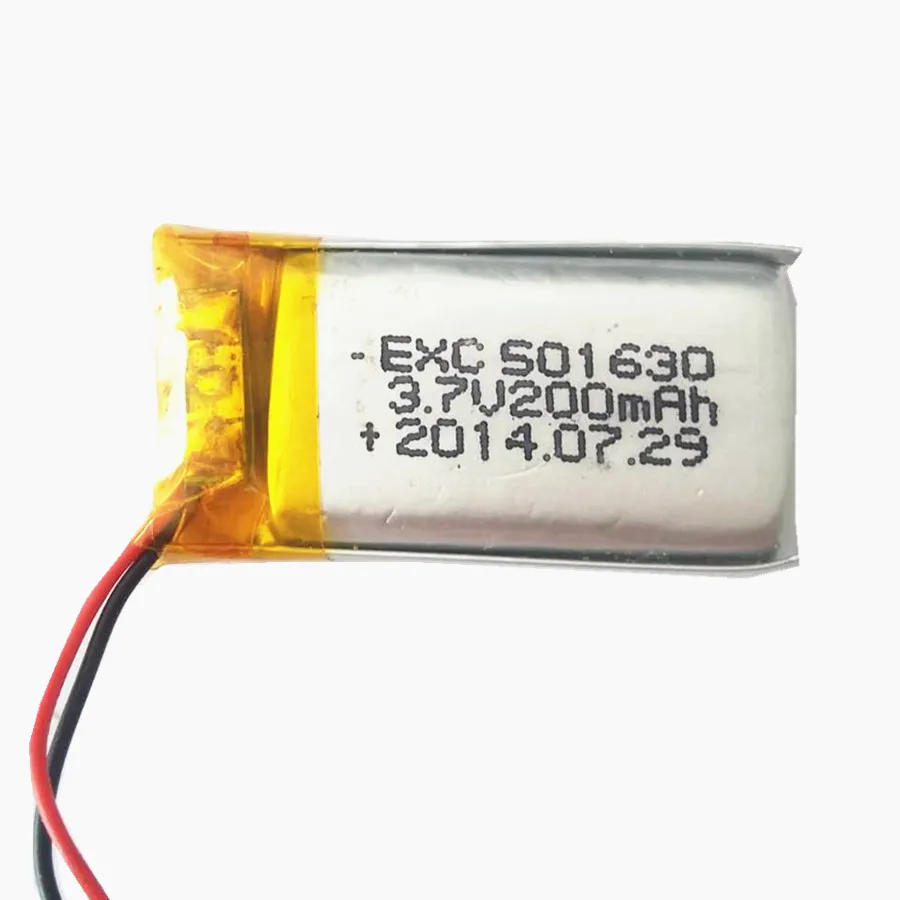

3.7V 200mAh Li-Polymer Battery 501630

Product Description

Product Name: Polymer Li-ion Battery
Product Model: 501630

Battery Quality:
1. Cells: A grade cells to make sure batteries in high and full capacity
2. Protection: Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload
3. Compose Type: Injection Technology to make battery more stable
4. Certifications: CE, UL, UN, RoHS, ISO9001
5. Long life cycly, No memory, environment friendly

Advantages:
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price& High quality
9, Good consistency, low self discharge
10, Light weight, small size

Main application:
MID, PDA, DVD, portable TV, notebook PC, Mobile products, etc.





No.ItemSpecification
1Rated Capacity200mAh
2Nominal Voltage3.7V
3Charge Limited Voltage4.20 +0.03 -0.02V
4Discharge Cut-off VoltageThe min is2.75V, and the standard is3.0V.
 End-of-charge Current0.02C
6Standard ChargeConstant Current: 1C200mA)
Constant Voltage: 4.2V
End-of-charge Current: 0.02C
7Standard DischargeUsing 0.2Cconstant current discharge to the Discharge Cut-off Voltage.
Quickly discharge current: 1C(200mA)
8Maximum Continuous Charge Current1C(200mA)
9Maximum Continuous Discharge Current1C200mA)
10Operating Temperature RangeCharge:             0 ~ 45’ C
Discharge:     – 20 ~ 60’ C
StorageTemperature Range-20 ~60’ C
11Operating And Storage Humidity RangeLess than 85%RH
12Weight10gor less
13Cell Dimension  Length:   ≤ 30(not including tabs)
  Width:     ≤ 16mm
Thickness: ≤ 5.0mm
